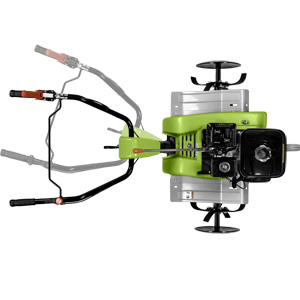

Princess MP3 PRO

Princess tillers are reliable, safe and well balanced.
The Grillo Princess MP3 PRO combines the advantages and maneuverability of a belt-driven chain tines with the efficiency and sturdiness of the hexagonal shaft tiller of the most professional tillers.
The Princess MP3 PRO has two forward gears and reverse.
The 97 cm wide tiller has a tines diameter of 33 cm and consists of 6 stars of tines and side discs.

The Grillo Princess MP3 PRO is equipped with an active coupling; the advance lever on the handlebar, when pressed, starts the rotation of the tines. When the lever is released, the tines stop immediately and the engine remains running. Maximum practicality and safety.

The two-speed plus reverse gearbox is mechanical with oil-bath gears and the gear lever is always within reach.

The first gear is useful for breaking up the hard surface crusts and the second gear finely shreds the soil.

The Grillo Princess MP3 PRO is equipped with the Honda's GX 200 petrol engine or the new Loncin G200FA, also petrol-powered. These are latest-generation engines with the best features for agricultural use, including excellent torque at low revs. Sturdy, reliable and quiet, they are equipped with an oil bath filter to enable them to work even in very dusty areas.

The tines are made of hardened steel are bolted together. The tiller shaft is hexagonal with a 27 mm hexagon.
The tiller drive housing is bolted on for maintenance purposes.

The height-adjustable spur with 8 positions is oscillating.

Two spurs are supplied as standard: one for soft soil and one for hard soil.
The adjustment of the spur determines the working depth.
When the spur is set low, the tines sink deeper into the ground.
With the spur set high, the center of gravity shifts forward, and the machine therefore tends to move forward more quickly.
Using the side discs and high spur increases flotation and forward movement.

The furrower replaces the spur and allows perfect furrows of the desired depth to be made for seeding or irrigation.

Side discs should not be used when tilling hard soil that has never been tilled.
In softer soils, side discs become very useful: they help maintain direction, advance and protect nearby crops from tilling.

The handlebar is adjustable in height and laterally, with practical levers, without having to unscrew screws or knobs. This makes it easy to work between plants, without stopping to avoid branches or obstacles.

The front wheel, provided as standard, is the best transfer system. It is equipped with a practical spring device that automatically locks it in the working and transfer positions.
In addition, the Grillo Princess tiller is easy to transport by car because of its reversible handlebar and compact dimensions.

Cleaning and maintenance is very simple! You only need to check periodically the engine oil level and clean the filter. The gearbox doesn't need any maintenance. As with all Grillo products, the Princess was designed and built to last plus retain its value over many years. All components, from the simplest to the most complex, are of a high quality standard. Grillo mounts last generation engines! Frame, handlebar, tiller, everything is built by Grillo in Italy, using the best materials and the latest technology to have high, consistent and 100% controlled quality.

Painting of all Grillo machines is made with a double electrostatic powder coating process. After washing and preparation, a first protective coat is applied then baked in a special oven; this has proven to be the best base for the application of the finish. The second coat consists of powder coating and further baking in an oven at 190°C; this gives the characteristic hardness and shine. All machines are assembled with care in every detail and tested scrupulously by trained personnel. Final inspection includes running the engine in order to check all its functions to guarantee a first class product.

All Grillo machines are distributed and serviced by a widespread dealer network. Spare parts remain available for many years after production has stopped giving you extra confidence in Grillo.

Technical data sheet Princess MP3 PRO

Back to

	Engine	Honda GX200 OHV Start recoil starter Supply fuel Displacement 196 cc, 1 Cylinder Power 5.5 HP (4.1 kW) Air cooled Oil bath air filter
	Engine	Loncin G200FA Start recoil starter Supply fuel Displacement 196 cc, 1 Cylinder Power 5.5 HP (4.1 kW) Air cooled Oil bath air filter
	Fuel tank capacity	3,1 L mot. GX200 - 3 L mot. G200FA
	Gearbox	2 forward gears + reverse gear
	Clutch	With lever control on the handlebar working on the belt tensioner
	Final drive	With pinion and chain
	Standard rotary tiller	With 6 tines and side discs, working width 97 cm. With hexagonal shaft 27 mm
	Hoes system diametre	33 cm
	Working depth area without side disks	Adjustable at 82 and 56 cm
	Working depth	33 cm
	Max. revolutions tiller	1st gear 36 rpm – 2nd gear 160 rpm – reverse gear 36 rpm
	Carter of the tiller	Bolted, pressed steel with screwed shells
	Handlebar	Height and side adjustment
	Standard features	Front transfer wheel
	Safety devices	When the user leaves the handlebars the machine stops. Mudguards and handlebars according to the law. Silencer protection.
	Weight	66 kg (GX200); 68 kg (G200)
