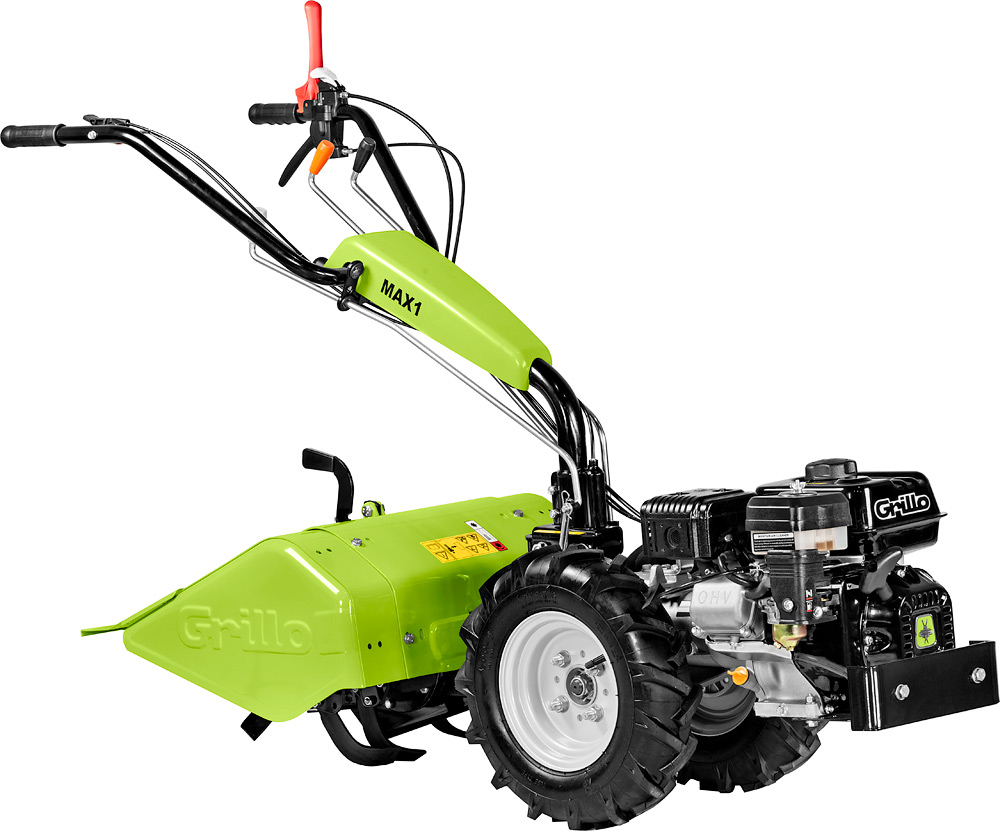

MAX1

Technical data sheet MAX1

	Engine	Loncin G200FA Start recoil starter Supply fuel Displacement 196 cc, 1 Cylinder Power 5.5 HP (4.1 kW) Air cooled Oil bath air filter
	Fuel tank capacity	3 Lt.
	Transmission	with oil bath gears
	Gearbox	With clutch engagement. The walking tractor version has 2 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears
	Clutch	conic active
	Standard rotary tiller	Adjustable rotary tiller with x 4 tines. Working width 580 mm
	Hoes system diametre	32 cm
	Working depth	16 cm
	P.T.O.	965 rpm independent of the gearbox. Clockwise rotation for the walking tractor version, anticlockwise rotation for the sickle bar version.
	Available tyres	Pneumatic wheels tractor 4.00-8 (fixed disks)
	Handlebar	Height and side adjustment. Fitted on anti-vibration blocks
	Safety devices	Active clutch, reverse speed – PTO cut-out
	Weight	Weight: standard version 111 kg

In action! Photos and Videos

Back to

Implements MAX1

Back to

Pneumatic tractor wheels 4.00-8 (fixed disks with two positions); pair

to be applied on G 107d - G 55 - G 84 - G 85d - GF 2 - GF 3 - GF 3DF - MAX1 - WR77 PRO - WR78 PRO

item no.: 900112

weight: 9 kg

Adjustable rotary tiller 58 cm (4x4 tines)

to be applied on G 107d - G 84 - G 85d - MAX1 - WR77 PRO - WR78 PRO

item no.: 984511

weight: 40 kg

Adjustable furrower behind the rotary tiller (cod. 945022)

to be applied on G 107d - G 108 - G 110 - G 55 - G 84 - G 85d - MAX1 - WR77 PRO - WR78 PRO

item no.: 945022

weight: 5 kg

This implement carry out accurate furrows of any dimension. The furrower behind the rotary tiller slots into the back of the rotary tiller so enabling rotavating and ridging in one pass.

Not applicable on code 994711.

Rotary tiller support wheel

to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 84 - G 85d - MAX1 - WR77 PRO - WR78 PRO

item no.: 9C7012

weight: 2 kg

The tiller support wheel is fitted to the rear of the rotary tiller using a spring-loaded quick pin.
It keeps the hoes off the ground and facilitates transfers.

It cannot be used with double rotation tiller code 994711

Double rotation tiller, 60 cm (4x4 tines)

to be applied on G 84 - G 85d - MAX1 - WR77 PRO - WR78 PRO

item no.: 994711

weight: 30 kg

The double rotary tiller has 4 floating hoes per element and is suitable for all types of soil.

The hoes, mounted with bolts, are made of hardened steel and have a working diameter of 26 cm.

The tilling width is 60 cm.

The special feature of this tiller is that it combines the advantages of the standard rotary tiller and the counter-rotating tiller.

It is equipped with a lever control on the bonnet that reverses the direction of rotation of the milling cutter as required. In counter-rotating mode, even very hard soils can be finely tilled without fatigue.

The bonnet is wrap-around and safe for the operator; it retains the soil inside and allows it to be further shredded.

The tiller housing is made of cast iron and the gearbox is in an oil bath.

Special guards on the tiller axle prevent soil or grass from entering the transmission.

Furrower behind the rotary tiller (cod. 944622)

to be applied on G 45 - G 46 - G 52 - G 84 - G 85d - MAX1 - WR77 PRO - WR78 PRO

item no.: 940011

weight: 3 kg

Single-blade pro cutter bar 117 cm with crank action

to be applied on G 107d - G 84 - G 85d - GF 3 - GF 3DF - MAX1 - WR77 PRO - WR78 PRO

item no.: 9M6811 9M7111

weight: 32 kg

The central middle-cut toothed CUTTER BAR PRO is a special bar especially designed for professional use.
It has been conceived to cut in rough and fallow land, but it can be successfully used to cut hay too and also in agriculture to clean in-between orchards, thanks to its excellent manageability.
It is provided with an anti-clogging cutting system with a high resistance to impact with foreign objects.
Great efficiency is achieved thanks to high-quality steel.
