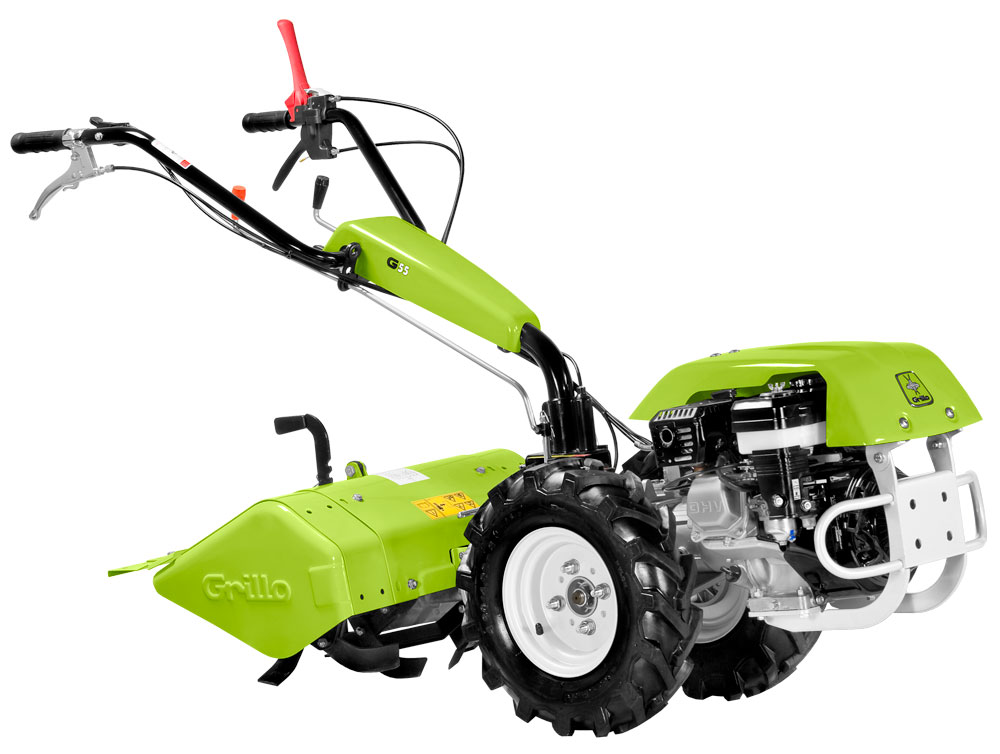

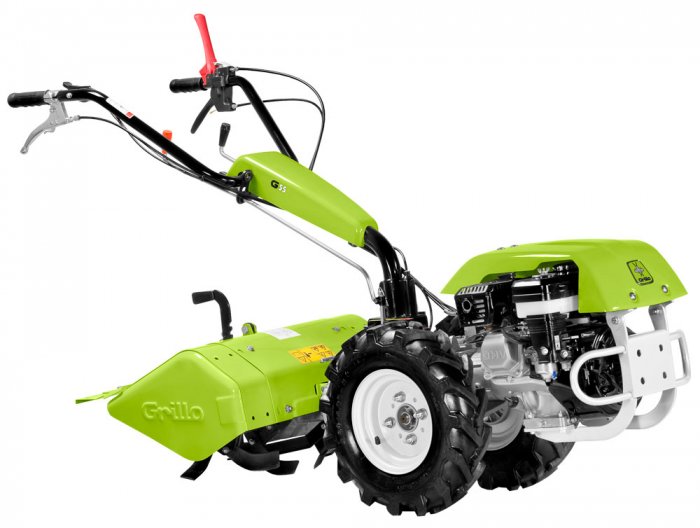

G 55
Versatile and robust walking, with a quick coupling as a standard feature.
The Grillo G55 is an appropriate walking tractor for all kind of works on medium-sized areas.
It is fitted with a 4 speed-gearbox with gears in oil-bath, with 2 forward and 2 reverse gears.
G55 is an easily manoeuvrable and safe machine and offers the possibility to attach several front and rear-mounted attachments. Its handlebar can be reversed through 180° via a lever. The attachments can be connected through a coupling without the need to use tools. There is also the possibility to attach a plough kit containing large wheels, adjustable extensions, 180° turn-wrest plough and wheel weights.
It is possible to achieve a greater stability on slopes by widening the wheel track by 12 or 24 cm by means of the appropriate Grillo wheel extensions.
|
Engine |
Honda GX200 OHV Start recoil starter Supply fuel Displacement 196 cc, 1 Cylinder Power 5.5 HP (4.1 kW) Air cooled Oil bath air filter |
| Engine |
Loncin G200FA Start recoil starter Supply fuel Displacement 196 cc, 1 Cylinder Power 5.5 HP (4.1 kW) Air cooled Oil bath air filter |
|
|
Fuel tank capacity | 3,6 L eng. 3000 OHC - 3,1 L eng. GX200 OHC |
|
Transmission | with oil bath gears |
| Gearbox | With clutch engagement. The walking tractor version has 2 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears | |
| Reverse gear unit | by lever | |
| Clutch | conic active | |
|
Standard rotary tiller | Adjustable rotary tiller with x 4 tines. Working width 58 cm |
| Hoes system diametre | 26 cm | |
| Working width | Adjustable at 58 and 50 cm | |
| Working depth | 13 cm | |
| P.T.O. | 965 rpm regardless of the gearbox. Clockwise rotation for the walking tractor version, anticlockwise rotation for the sickle bar version. | |
|
Available tyres | Pneumatic wheels tractor 4.00-8 (fixed disks), 16x6.50-8 (fixed disks), 5.00-10 (adjustable disks) |
| Speed | With 4.00-8 wheels 1st gear 1,1 km/h, 2nd gear 2,6 km/h | |
| Handlebar | height and side adjustment. Fitted on anti-vibration blocks | |
| Standard features | Attachments quick coupling having 50 mm diameter | |
| Safety devices | Active conic clutch | |
|
Weight | Standard version: 86 kg |
Pneumatic tractor wheels 4.00-8 (fixed disks with two positions); pair
![Pair pneumatic "Tractor" wheels 4.00-8 [fixed discs] - COD. 900112](/data/img_prodotti/A636.jpg "Pair pneumatic \"Tractor\" wheels 4.00-8 [fixed discs] - COD. 900112")
to be applied on G 107d - G 55 - G 84 - G 85d - GF 2 - GF 3 - GF 3DF - MAX1 - WR77 PRO - WR78 PRO
item no.: 900112
weight: 9 kg
Pneumatic wheels 16x6.50-8 (fixed disks) (Pair)
![Pair pneumatic "Tractor" wheels 16X6.50-8 [fixed discs] - COD. 912712](/data/img_prodotti/A637.jpg "Pair pneumatic \"Tractor\" wheels 16X6.50-8 [fixed discs] - COD. 912712")
to be applied on G 55 - GF 2
item no.: 912712
weight: 14 kg
Pneumatic Tractor wheels 5.00-10 (adjustable disks); pair
![Pair pneumatic “Tractor” wheels 5.00-10 [adjustable discs] - COD. 900412](/data/img_prodotti/A635.jpg "Pair pneumatic “Tractor” wheels 5.00-10 [adjustable discs] - COD. 900412")
to be applied on 11500 - 3500 - G 107d - G 108 - G 110 - G 55 - G 85d - GF 3 - GF 3DF
item no.: 900412
weight: 22 kg
The adjustable discs permit to modify the external width of the wheels according to the type of labour to be done.
On walking tractor G55 they can be mounted only when using plough or furrower.
Item 9C4312 (wheels extensions) is needed on 3500, 11500 rotavators equipped with plough.
Pneumatic tractor wheels 5.00-12 (adjustable disks) for plough (pair)
![Pair pneumatic "Tractor" wheels 5.00-12 [adjustable discs] - COD. 902512](/data/img_prodotti/A638.jpg "Pair pneumatic \"Tractor\" wheels 5.00-12 [adjustable discs] - COD. 902512")
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d
item no.: 902512
weight: 25 kg
Wheel extensions 12 cm (pair) (fit 2 pairs max)
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d - GF 2 - GF 3 - GF 3DF
item no.: 937112
weight: 2 kg
Adjustable rotary tiller 58 cm (4x4 tines)
![Adjustable rotary tiller 50 cm [4X4 tines] - COD. 978911](/data/img_prodotti/A379.jpg "Adjustable rotary tiller 50 cm [4X4 tines] - COD. 978911")
to be applied on G 55
item no.: 994811
weight: 25 kg
Rotary tiller support wheel
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 84 - G 85d - MAX1 - WR77 PRO - WR78 PRO
item no.: 9C7012
weight: 2 kg
The tiller support wheel is fitted to the rear of the rotary tiller using a spring-loaded quick pin.
It keeps the hoes off the ground and facilitates transfers.
It cannot be used with double rotation tiller code 994711
Adjustable furrower behind the rotary tiller (cod. 945022)
to be applied on G 107d - G 108 - G 110 - G 55 - G 84 - G 85d - MAX1 - WR77 PRO - WR78 PRO
item no.: 945022
weight: 5 kg
This implement carry out accurate furrows of any dimension. The furrower behind the rotary tiller slots into the back of the rotary tiller so enabling rotavating and ridging in one pass.
Not applicable on code 994711.

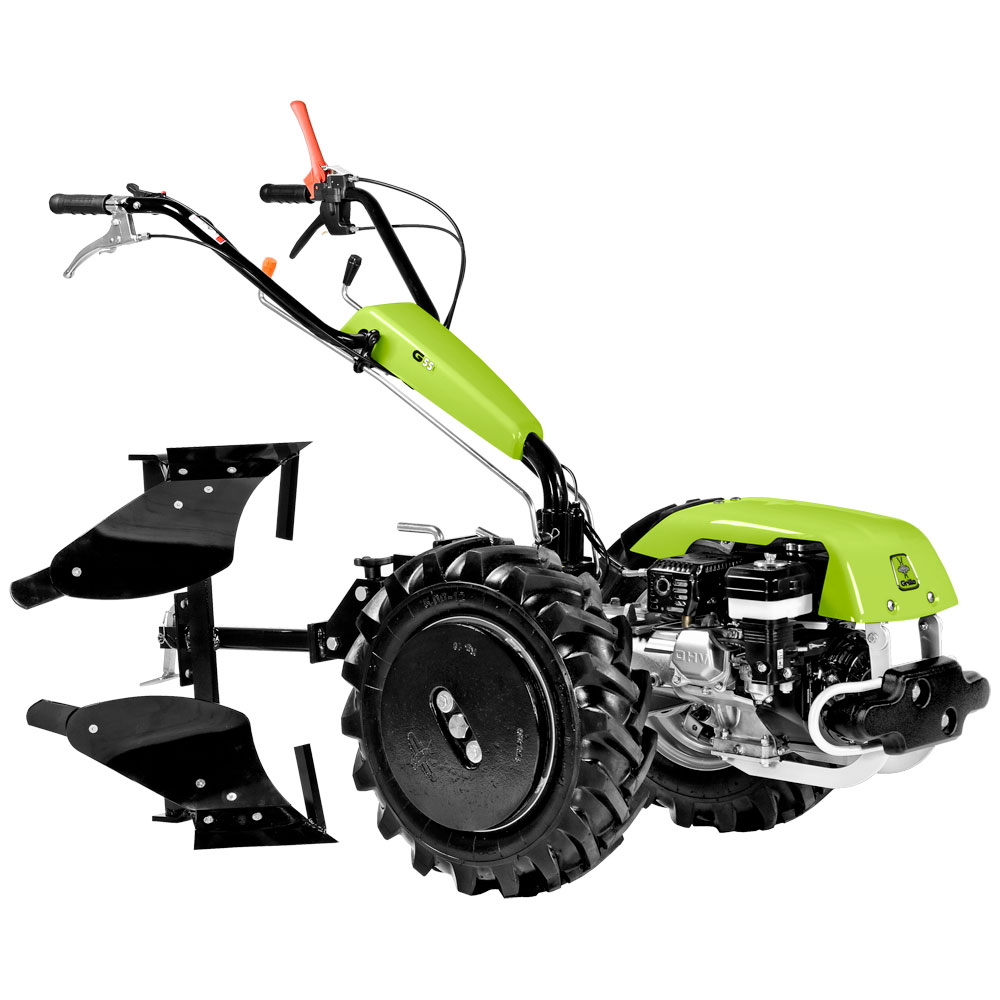

Plough kit for G55
to be applied on G 55
item no.: 952011
weight: 63 kg
The plough kit comprehends: Turn-wrest plough 180°, frame for attachments, wheel weights, weight for the engine and wheel extensions.
5.00-12 wheels cod.902512 and spacers cod.9A3211 needed

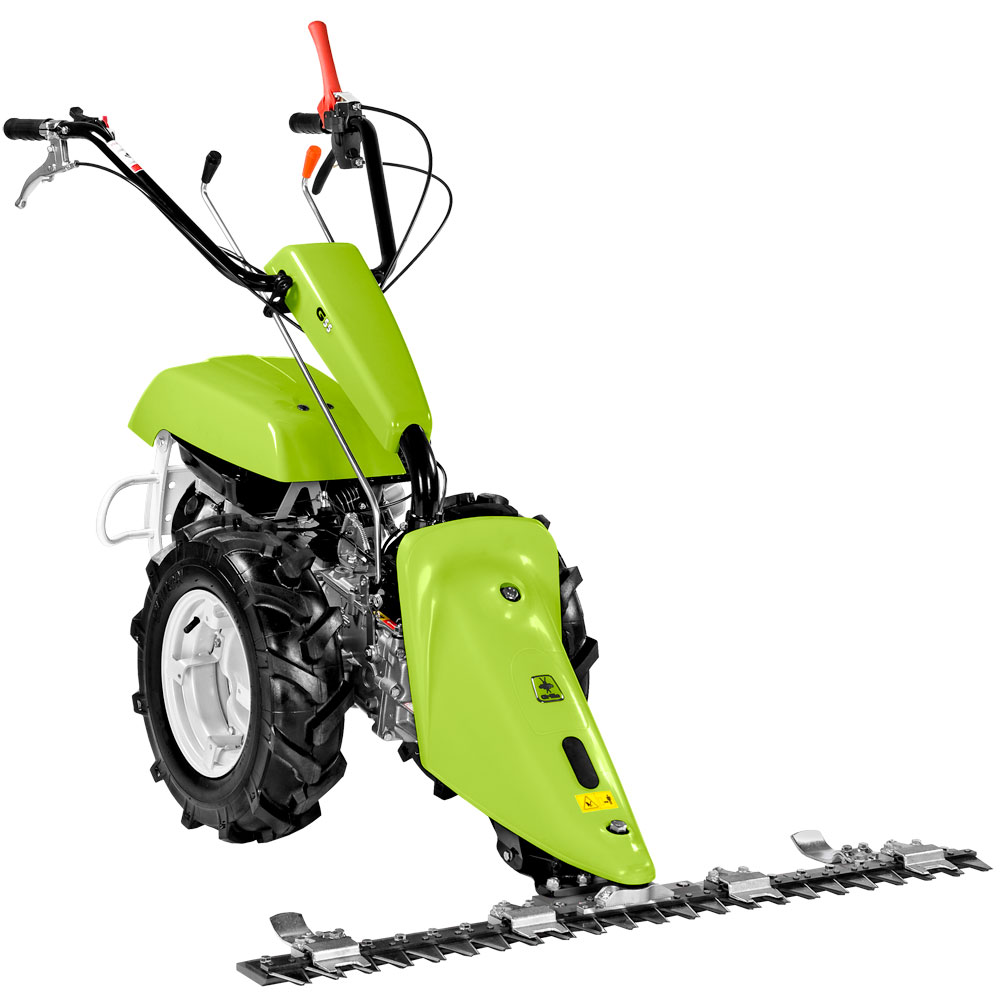

Single-blade PRO cutter bar 117 cm with crank action
to be applied on G 55 - GF 2
item no.: 9M6811 9M7511
weight: 36 kg
Middle cut fingers central cutter bar 110 with crank action
to be applied on G 55 - GF 2
item no.: 9M7211 9M7511
weight: 39 kg
Double blade central cutter bar 117 cm with action
to be applied on G 55 - GF 2
item no.: 9L2811
weight: 45 kg

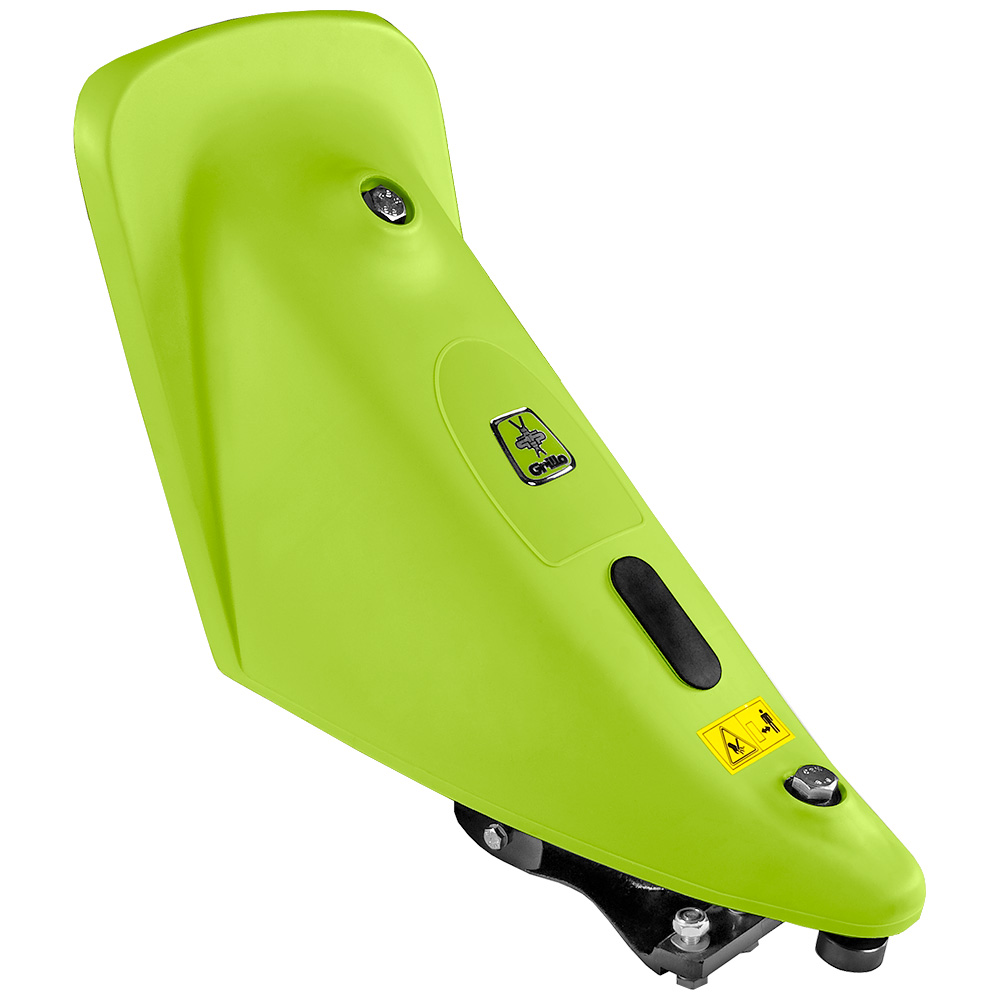

Cutter bar action with quick coupling
to be applied on G 55 - GF 2
item no.: 9M7511
weight: 14 kg
Cutter bar side protections for item 9L2811 and item 9L6911
to be applied on G 55 - GF 2
item no.: 9C0112
weight: 1,5 kg
Side protections for cutter bar p/n 9L2811 and 9L6911
Cutter bar Tirol side protection
to be applied on G 55
item no.: 9C1621
weight: 1,5 kg
to be applied on G 55 - GF 2
item no.: 9M5311
weight: 29 kg
Frame for attachments for single furrow plough
to be applied on G 55
item no.: 942722
weight: 3 kg
Single forrow plough
to be applied on G 55
item no.: 942522
weight: 6 kg
item 942722 needed, 5.00-10 tyres and whells weights 9G1212 are suggested
Adjustable furrower (item no. 942722 needed, 5.00-10 pneumatic wheels and wheel weights item no. 9G1212 are recommended)
to be applied on 11500 - 3500 - G 55
item no.: 942622
weight: 8 kg
Wheel weights 20 kg per pair for wheels 4.00-8, 4.00-10 and 5.00-10 (fixed and adjustable)
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d
item no.: 9G1212
weight: 20 kg
Cast-iron wheel weights.
Wheel-weights 11kg for GX 160 engine
to be applied on G 107d - G 55 - G 85d
item no.: 9G3211
weight: 11 kg
Tow bar
to be applied on G 107d - G 108 - G 110 - G 55 - G 85d
item no.: 9F4212
weight: 4 kg
Tipping towed trailer 150x110 cm with brakes
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d
item no.: 9D0321
weight: 150 kg
on walking tractors G 55, G 85, G85d and G 107d cod. 9F4212 needed
on walking tractors G 131 cod. 9F4712 needed
Transport Sulky with brake
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d
item no.: 943411
weight: 36 kg
Item 9F4212 needed for G55, G85, G107, G108 and G110.
Item 9F4712 needed for G131BC.
Rubber end for blade 100 cm
to be applied on G 55 - GF 2 - GH 7 - GH 8 - GH 9
item no.: 9E5911B
weight: 1 kg
Snow chains for 4.00-8 wheels (pair)
to be applied on G 55 - GF 2 - GH 7 - GH 8 - GH 9
item no.: 9M3422
weight: 2 kg
Snow chains for rear wheels 16x6.50-8 Climber 7 series (pair)
to be applied on Climber 7.15 - Climber 7.18 - G 55 - GF 2 - GH 7 - GH 8 - GH 9
item no.: 9M3722
weight: 2 kg
to be applied on G 55 - GF 2
item no.: 9M0122
weight: 55 kg
Spacers 25 mm for engines
to be applied on G 107d - G 55
item no.: 9A3211
weight: 0,5 kg
It can be fitted to :
GX200 gasoline
G300FA gasoline
KD15-350 diesel, recoil starter
KD15-440 diesel, recoil starter

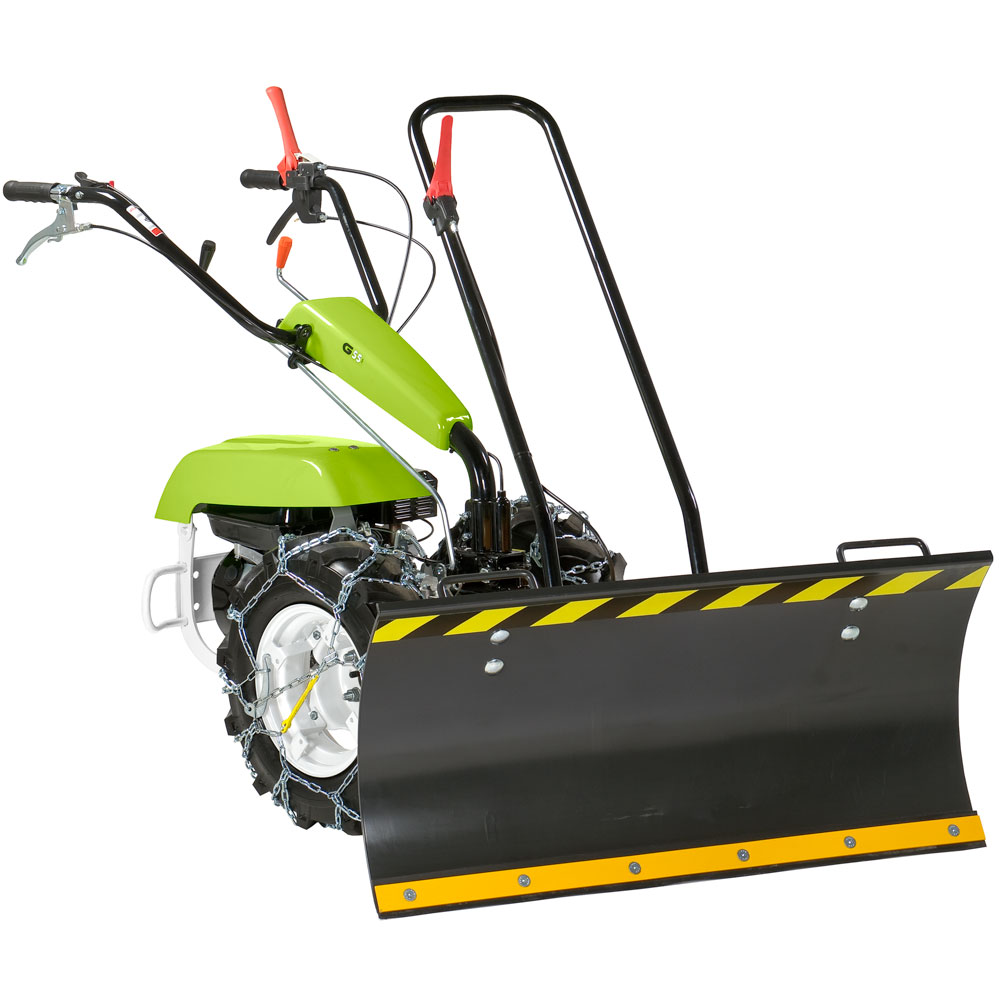

Front blade 100 cm
to be applied on G 55 - GF 2
item no.: 9E6411
weight: 38 kg
Weight for front blade
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 52 - G 55 - G 85d - GF 1 - GF 2 - GF 3 - GF 3DF - GH 7 - GH 8 - GH 9
item no.: 9E6111
weight: 20 kg
