G 110
A powerful and versatile walking tractor! Differential and brakes come as a standard feature.

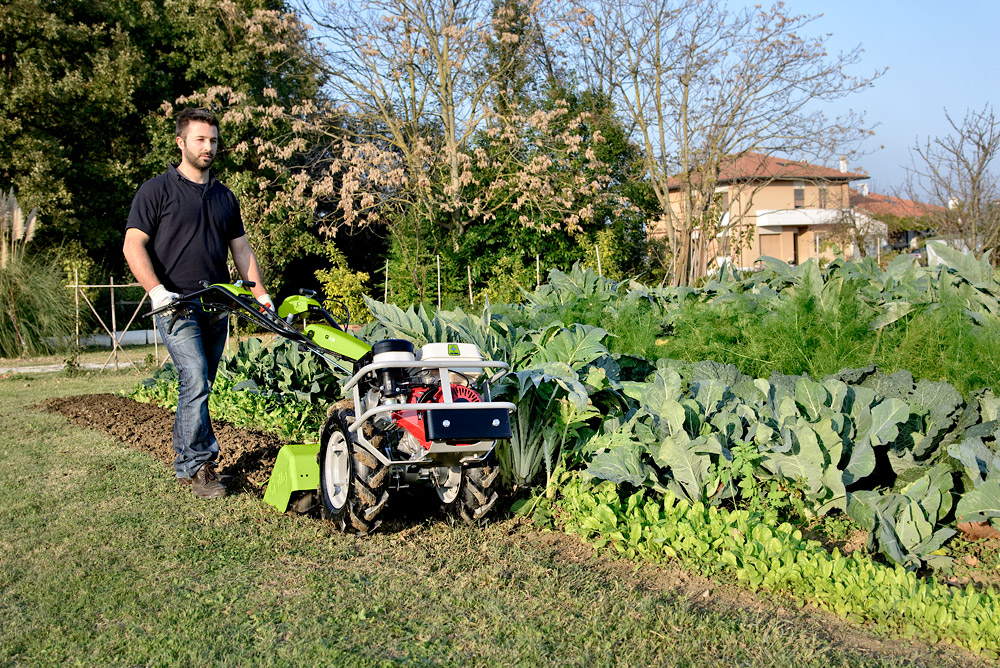

The Grillo G110 is an ideal walking tractor for working in agriculture, horticulture, in vegetable plots and gardening in large areas.
It is a well-balanced machine, fitted with a 6-speed gearbox with 3 forward gears + 3 reverse gears. The differential lock comes as a standard feature.
Despite its devices, such as active clutch and automatic reverse gear decelerator, this walking tractor can be safely handled by the user.
A great deal of front and rear – mounted attachments can be connected to the machine due to the reversing of the handlebar by 180°. Also an optional plough kit including larger diametre wheels, wheel extensions, turn-wrest plough and wheel weights. Attachments can connected through a flanged coupling or a quick coupling without needing tools.
The automatic quick gear-inverter lever reverses the forward movement when the handlebar is 180° turned.
To achieve a greater stability on slopes you can increase the wheel track up to 25 cm by using the appropriate fixed or adjustable Grillo wheel extensions.
|
Engine |
Honda GX390 OHV Start recoil starter Supply fuel Displacement 389 cc, 1 Cylinder Power 11.7 HP (8.7 kW) Air cooled Oil bath air filter |
| Engine |
Kohler KD15 440 Start recoil starter and electric with 12V battery Supply diesel Displacement 441 cc, 1 Cylinder Power 11 HP (8.1 kW) Air cooled Oil bath air filter |
|
|
Fuel tank capacity | 6,1 Lt. (GX390) - 5,0 Lt. (KD15 440) |
|
Transmission | Gear type in oil bath. |
| Gearbox | With inverter. Walking tractor version: 3 forward gears + 3 reverse gears. Sickle bar version: 3 forward gears + 3 reverse gears. | |
| Reverse gear unit | Rapid through lever. | |
| Clutch | Conic and active. | |
|
Standard rotary tiller | Adjustable, with tines x4. Working width: 68 cm. |
| Hoes system diametre | 32 cm | |
| Working width | Adjustable 37, 47, 58, 68 cm. | |
| Working depth | 16 cm. | |
| Item no. standard rotary tiller | 984611 | |
| P.T.O. | 965 revolutions independent from gearbox (walking tractor version: clockwise rotation / sickle bar version: anticlockwise rotation). | |
|
Differential locking | With lock device through lever. |
|
Available tyres | 4.00-10, 5.00-10 (5.00-12 for furrower and ploughing only), wide steel wheels 40x10 cm, Turf wheels 20x10.00-8 (item 937112 needed) |
| Speed | With 5.00-10 wheels: 1st gear 1,3 km/h, 2nd gear 2,4 km/h, 3rd gear 5,0 km/h. I° Reverse gear 0,7 km/h, II° Reverse gear 1,5 km/h, III° Reverse gear 3,2 km/h. | |
| Service brake | Drum brake, as a standard feature. | |
| Handlebar | With height and side adjustment and reversible. | |
| Safety devices | Active clutch, reverse speed – PTO cut out, automatic decelerator in reverse speed. | |
|
Weight | 142 kg (GX390) with cm 68 rotary tiller and 5.00-10 wheels- 168 kg (KD15 440) with cm 68 rotary tiller and 5.00-10 wheels. |
Pneumatic tractor wheels 4.00-10 (adjustable disks); pair
![Pair pneumatic "Tractor" wheels 4.00-10 [adjustable discs] - COD. 902412](/data/img_prodotti/A642.jpg "Pair pneumatic \"Tractor\" wheels 4.00-10 [adjustable discs] - COD. 902412")
to be applied on G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF
item no.: 902412
weight: 16 kg
Pneumatic Tractor wheels 5.00-10 (adjustable disks); pair
![Pair pneumatic “Tractor” wheels 5.00-10 [adjustable discs] - COD. 900412](/data/img_prodotti/A635.jpg "Pair pneumatic “Tractor” wheels 5.00-10 [adjustable discs] - COD. 900412")
to be applied on 11500 - 3500 - G 107d - G 108 - G 110 - G 55 - G 85d - GF 3 - GF 3DF
item no.: 900412
weight: 22 kg
The adjustable discs permit to modify the external width of the wheels according to the type of labour to be done.
On walking tractor G55 they can be mounted only when using plough or furrower.
Item 9C4312 (wheels extensions) is needed on 3500, 11500 rotavators equipped with plough.
Pneumatic tractor wheels 5.00-12 (adjustable disks) for plough (pair)
![Pair pneumatic "Tractor" wheels 5.00-12 [adjustable discs] - COD. 902512](/data/img_prodotti/A638.jpg "Pair pneumatic \"Tractor\" wheels 5.00-12 [adjustable discs] - COD. 902512")
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d
item no.: 902512
weight: 25 kg
Wide steel wheels Ø 40 x 10 cm (pair)
to be applied on CL 75 - G 107d - G 108 - G 110 - G 85d
item no.: 920312
weight: 12.5 kg
Pneumatic Turf wheels 20x10.00-8(fixed disks); item 937112 needed
to be applied on G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF
item no.: 918712
weight: 17 kg
Agri wheels 21x11.00-8 (pair)
to be applied on G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF
item no.: 919212
weight: 21 kg
Adjustable Wheel extensions to 25 cm (pair) (weight item no. 9G2512 can be used)
to be applied on G 107d - G 108 - G 110 - G 85d
item no.: 937312
weight: 11,5 kg
Wheel extensions 12 cm (pair) (fit 2 pairs max)
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d - GF 2 - GF 3 - GF 3DF
item no.: 937112
weight: 2 kg
Adjustable rotary tiller 58 cm (4 x tines)
to be applied on G 108 - G 110
item no.: 984511 946311
weight: 40 kg
Adjustable rotary tiller 68 cm (tines x 4)
to be applied on G 108 - G 110
item no.: 984611 946311
weight: 42 kg
Rotary tiller extension cod. 984511 to 68 cm (pair)
to be applied on G 107d - G 108 - G 110 - G 85d
item no.: 929112
weight: 3 kg
Rotary tiller extensions (pair) cod. 984611 to 77 cm
to be applied on G 107d - G 108 - G 110 - G 85d
item no.: 929612
weight: 4 kg
Adjustable counter-rotating tiller, 68 cm (4 x tines)
to be applied on G 108 - G 110
item no.: 994511 946311
weight: 40 kg
68 cm adjustable tiller with diam. 340 mm bigger tines (4 x tines)
to be applied on G 110
item no.: 994611 946311
weight: 50 kg
to be applied on G 110
item no.: 929711
weight: 5 kg
Adjustable rotary tiller, 70 cm (6 x tines)
to be applied on G 108 - G 110
item no.: 984711 946311
weight: 42 kg
Rotary tiller extension cod. 984711 to 83 cm (pair)
to be applied on G 107d - G 108 - G 110 - G 85d
item no.: 929312
weight: 7,5 kg
Rotary tiller support wheel
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 84 - G 85d - MAX1 - WR77 PRO - WR78 PRO
item no.: 9C7012
weight: 2 kg
The tiller support wheel is fitted to the rear of the rotary tiller using a spring-loaded quick pin.
It keeps the hoes off the ground and facilitates transfers.
It cannot be used with double rotation tiller code 994711

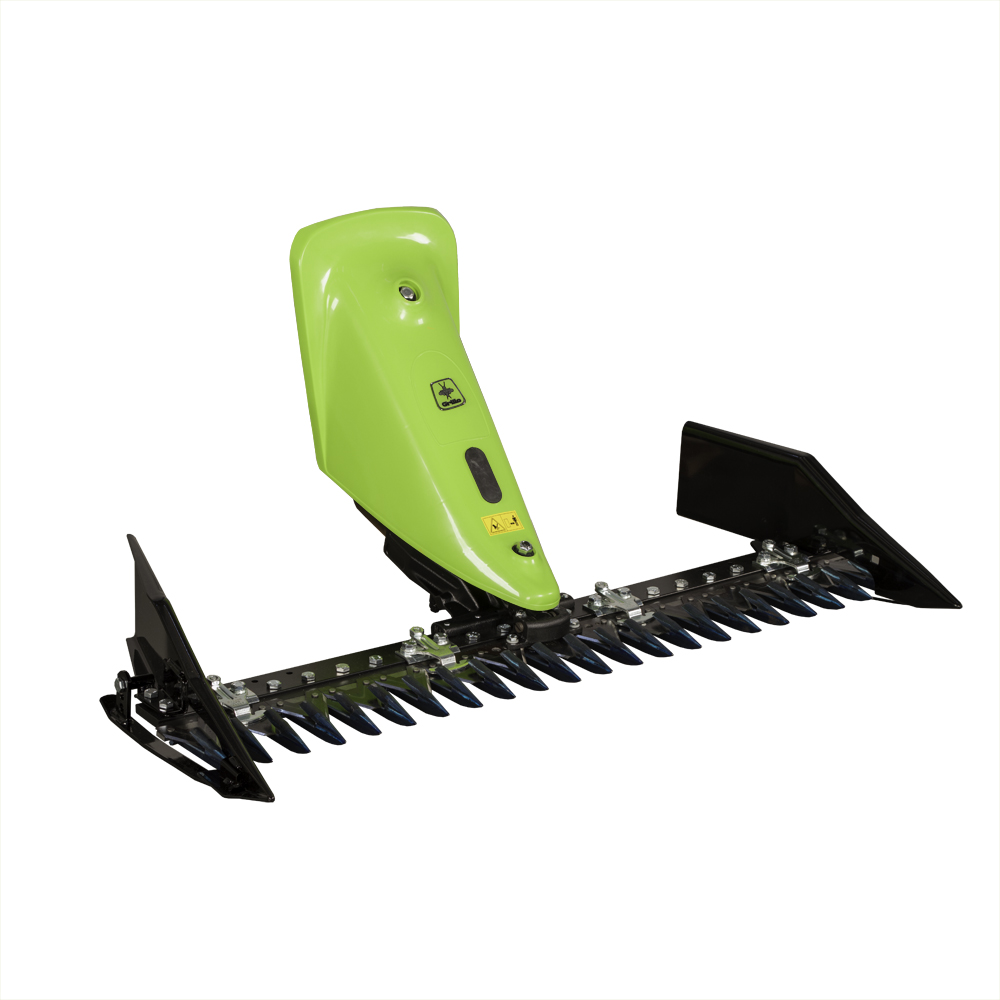

Middle-cut finger cutter bar 110 cm with crank action
to be applied on G 108 - G 110
item no.: 9M7211 9M7111 946311
weight: 36 kg
Middle-cut finger cutter bar 127 cm with crank action
to be applied on G 108 - G 110
item no.: 9M7311 9M7111 946311
weight: 40 kg
Middle-cut finger cutter bar 110 cm with oil-bath mouvement
to be applied on G 108 - G 110
item no.: 9M7211 998811
weight: 43 kg
Middle-cut finger cutter bar 127 cm with oil-bath movement
to be applied on G 108 - G 110
item no.: 9M7311 998811
weight: 47 kg
Single-blade PRO cutter bar with crank action (cm 117)
to be applied on G 108 - G 110
item no.: 9M6811 9M7111 946311
weight: 32 kg
Single-blade pro cutter bar 137 cm with crank action
to be applied on G 108 - G 110
item no.: 9M6911 9M7111 946311
weight: 35 kg
Single-blade PRO cutter bar 117 cm with oil-bath movement
to be applied on G 108 - G 110
item no.: 9M6811 998811
weight: 39 kg
Single-blade pro cutter bar 137 cm with oil-bath movement
to be applied on G 108 - G 110
item no.: 9M6911 998811
weight: 42 kg
132 cm professional double cutting-bar with oil-bath movement
to be applied on G 108 - G 110 - GH 7 - GH 8 - GH 9
item no.: 996011 999011 946311
weight: 52 kg
132 cm professional double cutting-bar with oil-bath movement and self-regulating elastic hold-down clamps (Busatis Austria System)
Cutter bar crank action
to be applied on G 108 - G 110
item no.: 9M7111 946311
weight: 15 kg
Cutter bar oil bath action
to be applied on G 108 - G 110
item no.: 998811
weight: 22 kg
Rotary cutter 75 cm
to be applied on G 108 - G 110
item no.: 9M1111 946311
weight: 60 kg
With blade brake, pivoting front wheel and skid shoes.
(For diesel engines item 9G4812 needed).
Weight for grass cutter for diesel engine
to be applied on G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF
item no.: 9G4812
weight: 6 kg

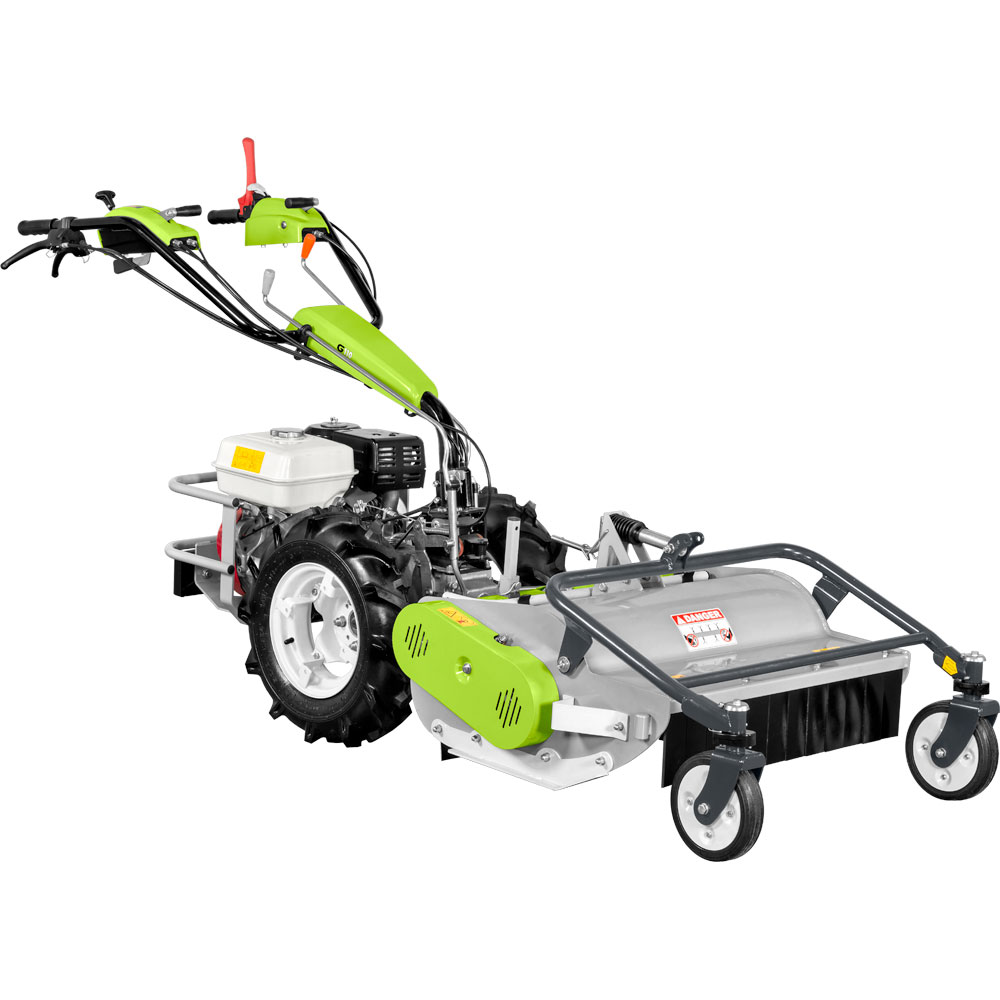

All purpose flail, 68 cm
to be applied on G 108 - G 110
item no.: 9G6311
weight: 75 kg
Scarifier kit for all purpose flail 68 cm
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF - GH 7 - GH 8 - GH 9
item no.: 9G6411
weight: 1.6 kg
All purpose flail 85 cm
to be applied on G 108 - G 110
item no.: 9G8311
weight: 80 kg
Item 946911 needed.
Scarifier kit for all purpose flail 85 cm
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d - GF 3 - GF 3DF - GH 9
item no.: 9G7011
weight: 2,5 kg
Rear coupling assembly for quick coupling (implement side)
to be applied on G 108 - G 110 - GH 7 - GH 8 - GH 9
item no.: 946511
weight: 2.5 kg
Front coupling assembly for quick coupling (machine side)
to be applied on G 108 - G 110 - GH 7 - GH 8 - GH 9
item no.: 946911
weight: 2.5 kg
Frame for attachments for furrow plough
to be applied on G 107d - G 108 - G 110 - G 85d
item no.: 945322
weight: 9 kg
Single furrow plough - item no. 945322 needed, pneumatic wheels 5.00-12 and wheel weights are recommended
to be applied on 11500 - 3500 - G 107d - G 108 - G 110 - G 85d
item no.: 943122
weight: 12 kg
Turn-wrest plough 180°
to be applied on 11500 - 3500 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d
item no.: 943222
weight: 21 kg
on motorhoes item no. 950522 needed;
on walking tractors item no. 945322 needed; we recommend 5.00-12 wheels and wheel weights
Adjustable furrower (item no. 945322 needed, 5.00-12 tyres and wheel weights recommended)
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d
item no.: 944122
weight: 12 kg
Potato lifter
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d
item no.: 9E6822
weight: 11 kg
Fitted on the back, enables the process of quickly harvesting small crops of root vegetables such as potatoes.
If applied on G85 - G85d - G107d - G108 - G110: item code 945322 needed, 5.00-12 tyres and wheels weights are suggested.
If applied on G131: item code 948522 needed, 6.50/80-12 tyres and and wheels weights code 9G2512 are suggested.
Adjustable furrower behind the rotary tiller (cod. 945022)
to be applied on G 107d - G 108 - G 110 - G 55 - G 84 - G 85d - MAX1 - WR77 PRO - WR78 PRO
item no.: 945022
weight: 5 kg
This implement carry out accurate furrows of any dimension. The furrower behind the rotary tiller slots into the back of the rotary tiller so enabling rotavating and ridging in one pass.
Not applicable on code 994711.
Plough kit for G108 - G110
to be applied on G 108 - G 110
item no.: 944411
weight: 68 kg
This kit includes: turn-wrest plough 180°, frame for attachments, wheel weights, wheel extensions.
(Only with 5.00-12 wheels code 902512 and flange code 9A3211)
Tow bar
to be applied on G 107d - G 108 - G 110 - G 55 - G 85d
item no.: 9F4212
weight: 4 kg
Tipping towed trailer 150x110 cm with brakes
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d
item no.: 9D0321
weight: 150 kg
on walking tractors G 55, G 85, G85d and G 107d cod. 9F4212 needed
on walking tractors G 131 cod. 9F4712 needed
Transport Sulky with brake
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d
item no.: 943411
weight: 36 kg
Item 9F4212 needed for G55, G85, G107, G108 and G110.
Item 9F4712 needed for G131BC.
Wheel weights 20 kg per pair for wheels 4.00-8, 4.00-10 and 5.00-10 (fixed and adjustable)
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d
item no.: 9G1212
weight: 20 kg
Cast-iron wheel weights.
Wheel weights 36 kg per pair for wheels 5.00-12 with adjustable disks
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d
item no.: 9G2512
weight: 36 kg
Front blade 125 cmwith quick coupling Ø 50 mm
to be applied on G 108 - G 110
item no.: 9E6511 946711
weight: 42,5 kg
Item 946911 needed.
Weight for front blade
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 52 - G 55 - G 85d - GF 1 - GF 2 - GF 3 - GF 3DF - GH 7 - GH 8 - GH 9
item no.: 9E6111
weight: 20 kg
Rubber end for blade 125 cm
to be applied on Climber 10 AWD 22 - Climber 10 AWD 27 - Climber 7.15 - Climber 7.18 - Climber 8.22 - Climber 9.18 - Climber 9.22 - Dumper 507 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d - GF 3 - GF 3DF - MD 15 - MD 18 - MD 22N - MD 24 AWD - MD 28 AWD
item no.: 9E5911C
weight: 1 kg
Snow chains for 5.00-10 wheels (pair)
to be applied on G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF
item no.: 9M3522
weight: 2 kg
Snow thrower two-stage 70 cm
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF - GH 9
item no.: 9G8022
weight: 77 kg
The 70 cm wide, two-stage snow blower is built with steel components to ensure strength and long service life.
The turbine has a chimney that can be swivelled from the driver's seat and adjustable slides to find the ideal working position.
The two-stage snow blower is ideal for heavy, prolonged and intensive use.
On Dumper 507 requires hydraulic lift kit, part no. 9A3912 and part no. 66397N (chimney rod)
Orientable sweeper 100 cm (inverter item no. 9A3912 needed)
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF
item no.: 9F5422
weight: 55 kg
Power harrow 50 cm for diesel engines
to be applied on G 107d - G 108 - G 110 - G 85d
item no.: 991122
weight: 57 kg
Power harrow 75 cm
to be applied on G 110
item no.: 992622
weight: 76 kg
For G110 walking tractor.
Rotary plough of 30 cm (wheels 5.00-10 needed)
to be applied on G 107d - G 108 - G 110 - G 85d
item no.: 943622
weight: 44 kg
For G108 and G110, item 946911 and item 946511 needed.
Stone burier, 62 cm
to be applied on G 110
item no.: 943522
weight: 90 kg
Full Range Catalogue 2024
(Download - file pdf - 21,78 MB)
Walking Tractors catalogue
(Download - file pdf - 6,91 MB)
DOUBLE BLADE CUTTER BAR PRO_Catalogue
(Download - file pdf - 183,50 KB)
PRO CUTTING BAR_Catalogue
(Download - file pdf - 184,21 KB)
