HWT 600 WD

The manoeuvrability and traction of this machine allow you to work in comfort and accuracy even on slopes.

Grillo HWT 600 WD Grillo HWT 600 WD Grillo HWT 600 WD

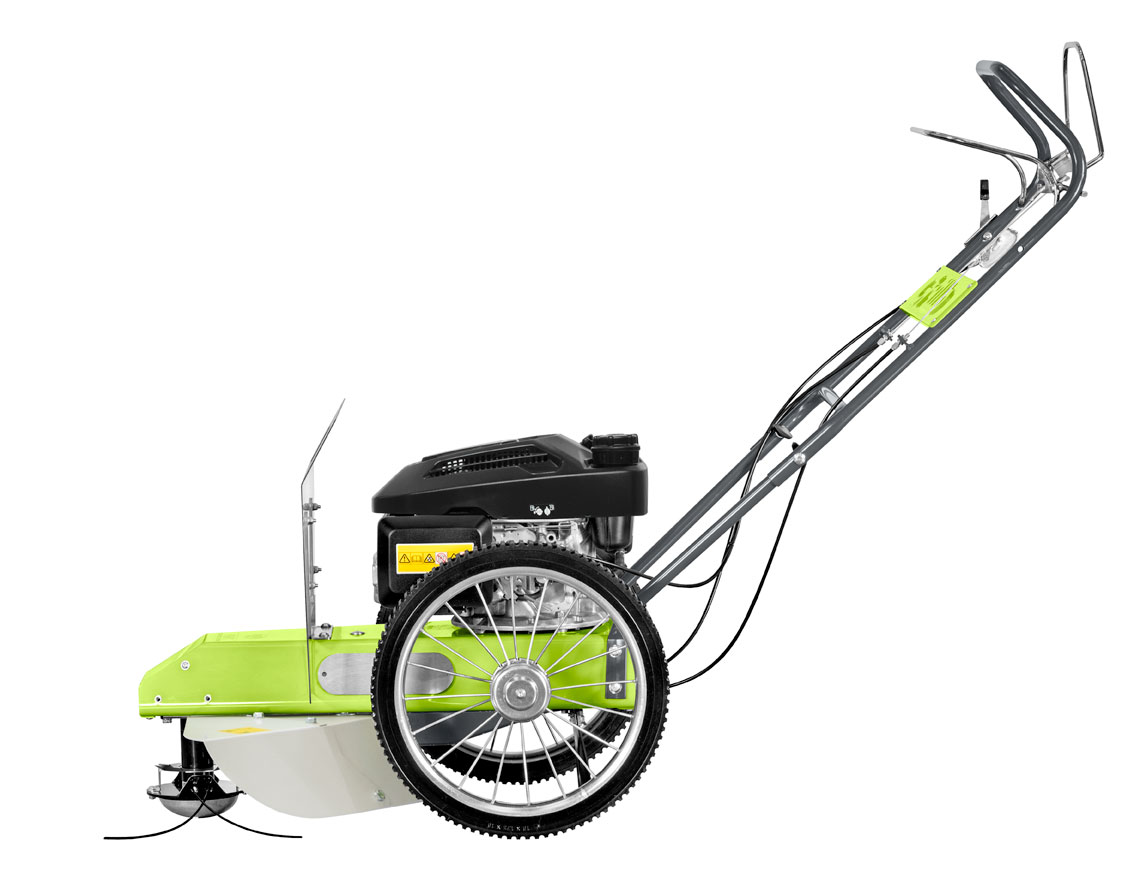

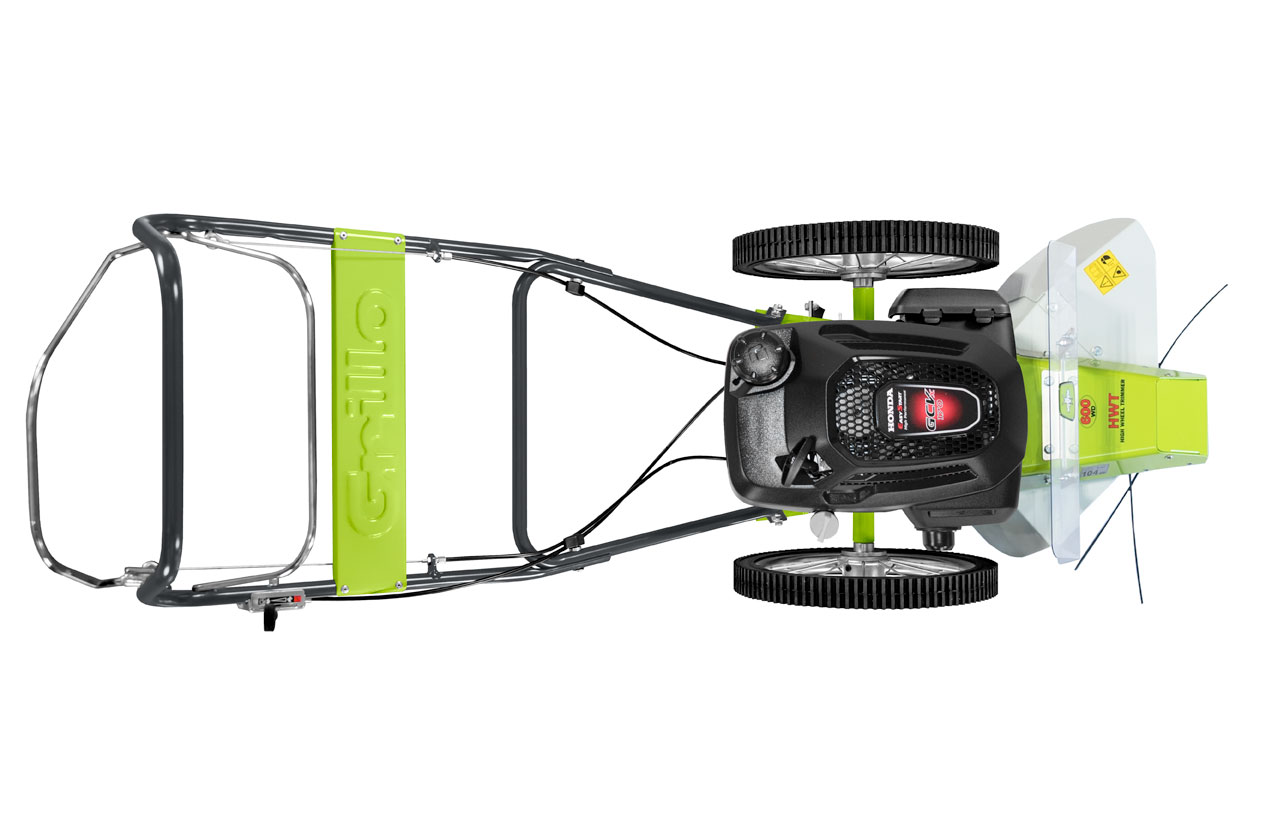

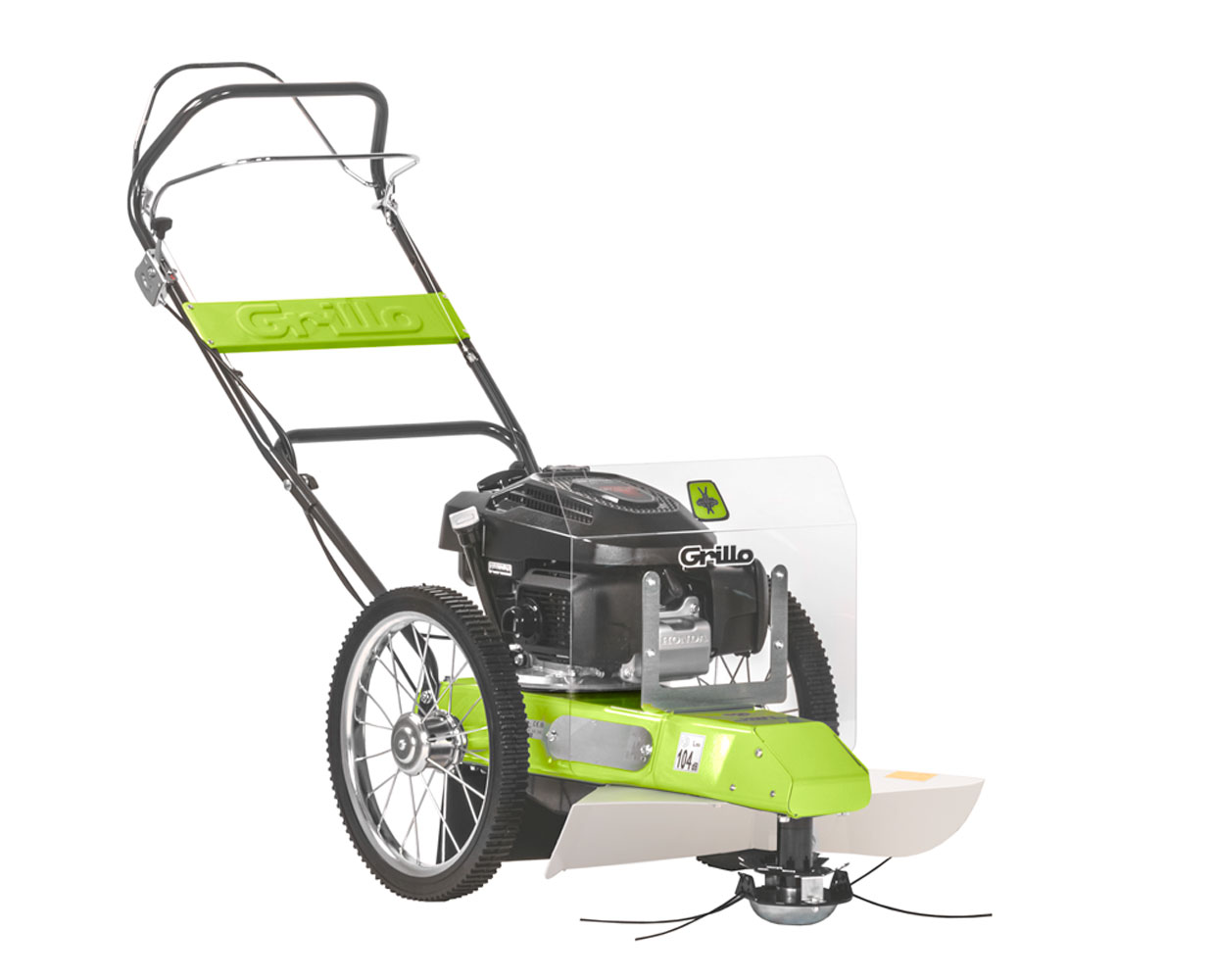

The HWT 600 WD is a self-propelled large wheel brush-cutter, suitable for cutting in rough areas and
gardens.
The manoeuvrability and traction of this machine allow you to work in comfort and accuracy even on slopes.
The machine is ideal for not only cleaning rural driveways or orchards, but also for mowing around edgings close to flowerbeds, vegetable plots or for cleaning roundabouts and kerbsides. It can also be used as a lawnmower for small gardens and in flat areas with excellent results.

The HWT 600 WD is fitted with a Honda GCV 170, 4-stroke petrol engine with oil bath gear transmission and high strength drive belt.

The brush-cutter is equipped with traction and allows convenient operation in all working conditions.

The forward speed is 2.5 km/h.

It’s equipped with a comfortable handlebar and front mounted lever to engage the cutter head and
a rear lever to engage the drive system.

The machine comes standard with a steel grass guard to prevent grass clippings from being thrown onto the road or driveways; a clear plastic front screen protects the engine without taking away visibility, while a rubber lower bulkhead, positioned between the wheels, prevents the operator from being run over by the grass clippings.

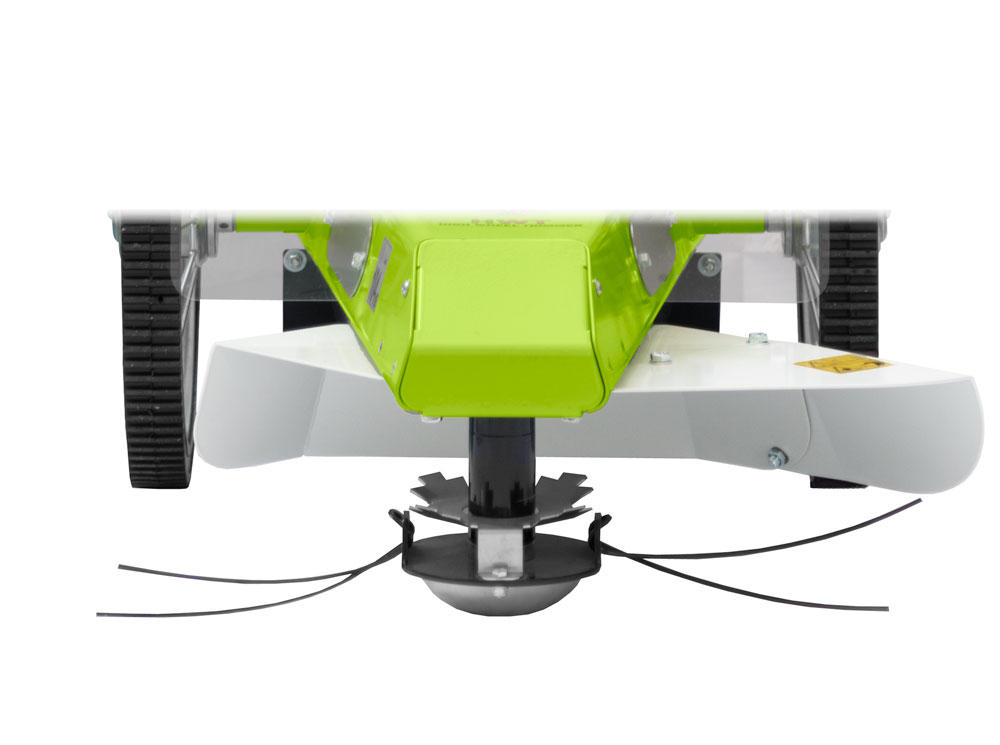

A stainless-steel anti-winding disc on the wire stop plate prevents grass from twisting on the cutting rotor.

The large driving wheels allow you to operate the machine with less fatigue and can also be used on slopes (max 25°).
By reversing the cord attachment plate you can obtain lower cutting heights.


Painting of all Grillo machines incorporates a double electrostatic powder coating process. At the first stage are the washing baths and preparation, then a first protective coat is applied which is then baked in a special oven, this has proven to be the best base for the application of the finish. The second coat consists of powder coating and still further baking in an oven at 190°C, this then produces the characteristic hardness and shine.
All machines are assembled with care in every detail and tested scrupulously by trained personnel. Final inspection will include running the engine in order to check all its functions and ensure the further and final guarantee of a first class product.

Grillo dealers will help you with quality and courtesy to make
the right choice according to your needs. High-quality components quickly available even for 30-year-old machines.


Technical data sheet
Technical data sheet HWT 600 WD
Engine Honda GCV170 OHC
Start recoil starter
Supply fuel
Displacement 166 cc, 1 Cylinder
Power 4.8 HP (3.6 kW)
Air cooled
Dry air filter with interchangeable filter cartridges
Fuel tank capacity 0,9 L
Transmission oil bath, mechanical with single-speed
Cutting configuration 2 double cables, nylon, square section, 3 mm thickness
Cutting width 60 cm
Cutting height Adjustable at 1.5 – 3 – 5 - 6 cm
Wheels 16", (Ø 41 cm) driven
Speed 2.5 km/h
Standard features transparent engine protection, flexible rubber band between the wheels, side plastic protection, anti-wrapping disc.
External sizes of the wheels 55 cm
Weight 47 kg
In action! Photos and Videos
In action! Photos and Videos
Grillo HWT 600 WD
Grillo HWT 600 WD
Grillo HWT 600 WD
Grillo HWT 600 WD
Grillo HWT 600 WD
Grillo HWT 600 WD
Grillo HWT 600 WD
Grillo HWT 600 WD
Grillo HWT 600 WD
Grillo HWT 600 WD
Download
Download
Pdf Full Range Catalogue 2024 (Download - file pdf - 21,78 MB)
Pdf HWT Trimmer catalogue (Download - file pdf - 1,97 MB)
